SIMPSON STRONG-TIE FREP JOIST CONNECTOR
SIMPSON STRONG- FREP JOIST CONNECTOR

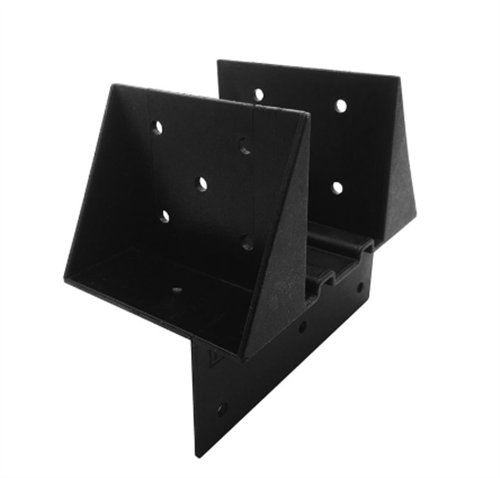

FREP (Fibre Reinforced Engineered Polymer) Double-Triple Connector & Joist Connector are corrosion-proof hangers which makes them an affordable alternative to stainless steel and is perfect for outdoor corrosive environments.

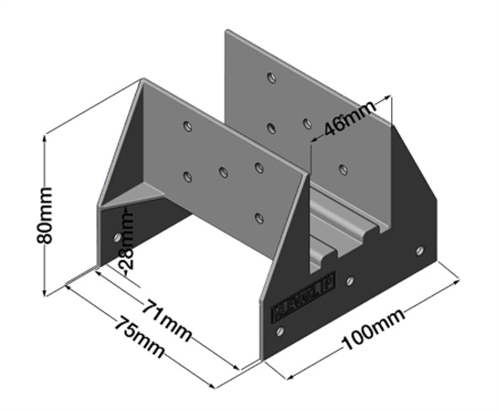

- DTC45 - To attach 45mm width joist to most size bearers

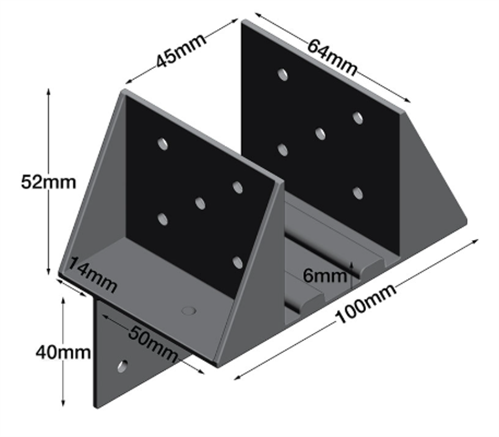

- JC9045 - To attach 45mm width joist to 90mm width bearer
Durability:
UV-A FREP material has undergone 2000hr laboratory UV exposure testing compliant with ASTM D790, which includes maintaining a temperature of 60°C and high humidity. FREP Product Installed in an outdoor structure - limited warranty 25 years.
Material
2mm FREP (Fibre Reinforced Engineered Polymer)
Features & Benefits
- Corrosion & UV resistant and a great alternative to stainless steel
- Reduces potential splitting and internal moisture due to skew nailing
- Ventilation ridges improve airflow to reduce moisture build-up
- The Joist Connector allows fixing to and stabilizes both sides of your joists to your bearer
- Will not rust – can be used in corrosive salt spray zones
- Can be fixed with N8 Hot Dipped Galvanised or SSNA8 Stainless Steel collated or loose 38mm x 3.32mm connector nails or SD#9 Connector Screws
- Aesthetic design for visually exposed decks or pergolas
Installation
Double Triple Connector
- Double Triple Connector to bearer:
2 fixings on one side of bearer and 2 fixings on top of bearer.
- Double Triple Connector to joist:
2 fixings on each side of joist
Joist Connector
- Attach Connector Nails (top left and right nails first). Use either loose or CCN64 collated nailer.
- Alternatively, use SD9 Connector Screws.
Important: Use only 38mm x 3.32mm diameter N8 galvanised connector nails or SSNA8/T10 stainless steel equivalents when fixing the FREP joist hangers to bearers.
Applications
- Outdoor decking structure
- Composite decking
- Alternative to stainless steel joist hangers
