SIMPSON STRONG-TIE MULTI PURPOSE SUPPORT KIT
SIMPSON STRONG- MULTI PURPOSE SUPPORT KIT

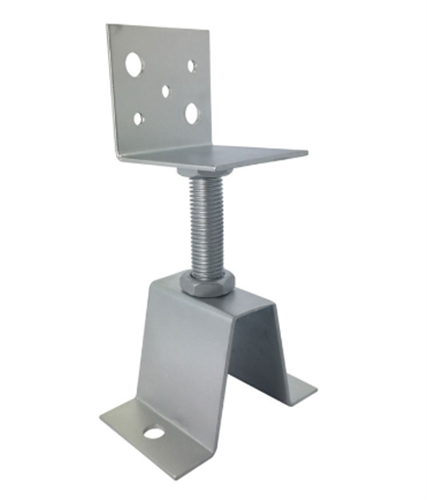

The Multi Purpose Support (MPS) has been designed as a mid-sized support. The MPS has excellent adjustability, along with the strength and versatility to be used with either bearer or joist combinations, or with joists on their own.
Please check the Corrosion Information to see if it is suitable for your application.

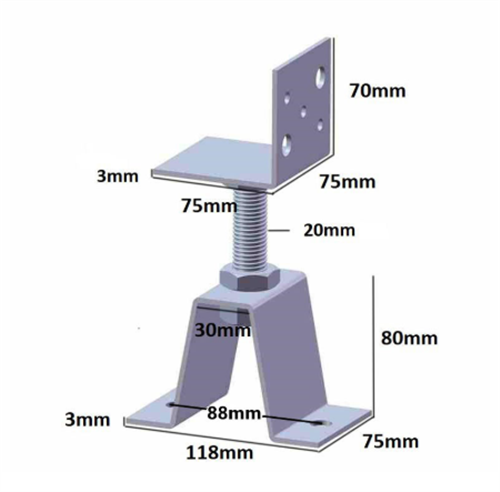

Material
Carbon Steel 3.0mm thick
Finish
Hot-Dip Galvanised (275g/m2)
Features & Benefits
- Unique design provides a significant load-bearing capacity for a relatively lightweight product
- Provides top of joist/bearer heights between from 180mm to 430mm above the existing concrete surface
- Suit bottom of bearer or joist heights from 90mm to 150mm
- Highly versatile, accommodating various bearer or joist combinations, or joists on their own

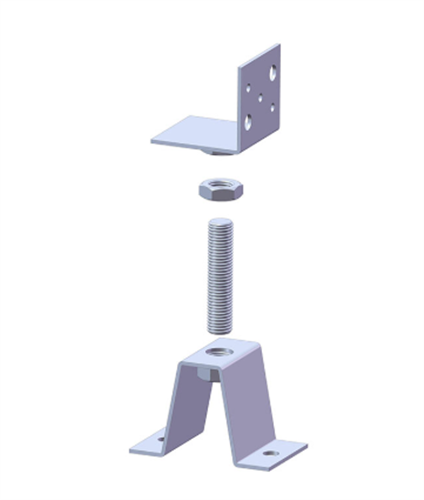

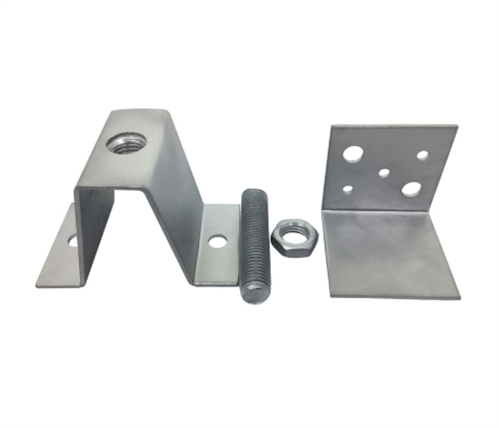

- Available in "kit" form, it is efficiently packaged, quick and easy to assemble
- All components are fully hot-dip galvanised (275g/m2)
Installation
- Pre-drill hole in concrete
- Set height accordingly
- Fixing MPS To Concrete: 2 x 10mm x 60mm THD Titen HD Screw Anchor (THD10060MG)
- When fixing 65mm - 100mm wide timber to MPS use 6.4mm x 76mm SDS Heavy Duty Connector Screws.
When fixing 45mm - 65mm wide timber to MPS use 6.4mm x 38mm SDS Heavy Duty Connector Screws
Approvals
Manufactured to meet deck loading as per Australian/New Zealand Standard AS/NZS 1170.1:2002, permanent, imposed and other actions.
