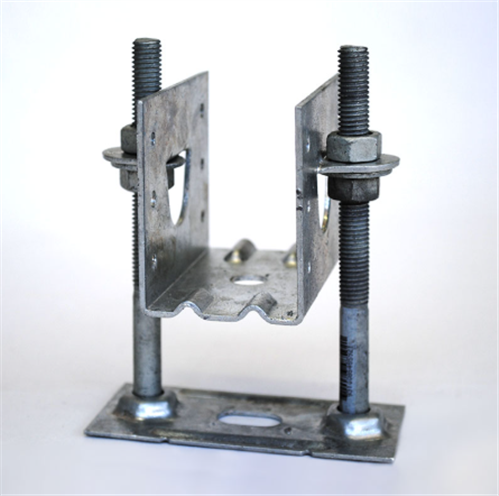

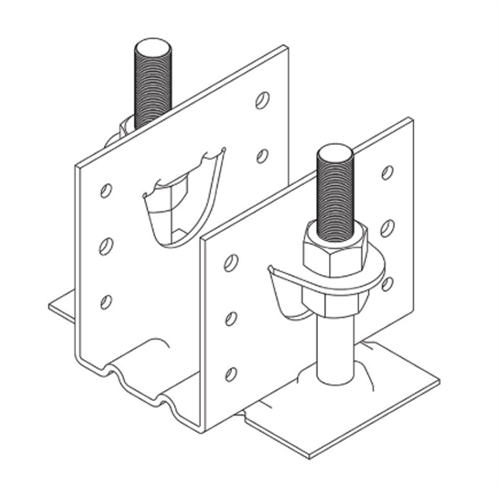

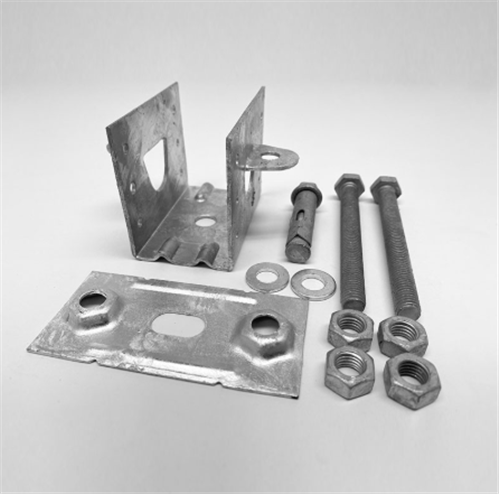

SIMPSON STRONG-TIE ADJUSTABLE JOIST SUPPORT KIT
SIMPSON STRONG- ADJUSTABLE JOIST SUPPORT KIT
The Adjustable Joist Support has been designed specifically to enable decks to easily be built over concrete slabs in areas where limited ground clearance is available. It is ideal for use when the step-down from your door to your concrete slab is between 100mm (minimum) and around 230mm (maximum).
Please check the Corrosion Information to see if it is suitable for your application.

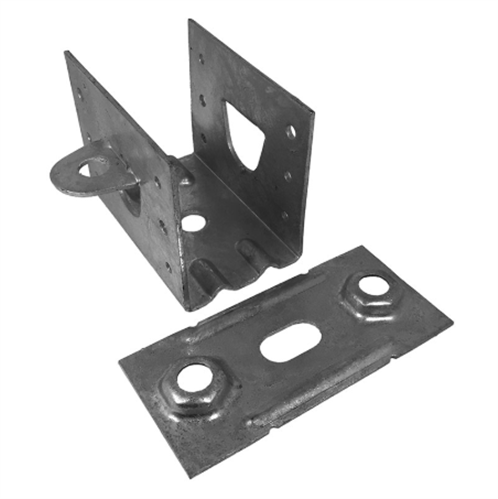

Material
- Base: Carbon Steel 1.5mm thick
- Hanger: Carbon Steel 2.0mm thick
Finish
Hot-Dip Galvanised (275g/m2)
Features & Benefits
- Keeps your joists off the concrete to prevent unwanted moisture ingress, which in turn prevents joist rot from occurring through the bottom of your joists
- Ideal for use in areas where the concrete has a built-in 'fall' to create a level deck
- Quick and easy to use, purpose-built for the application
- Provides a neat, professional look for your deck structure without the need for various packers and brackets to achieve your desired result
- The height of the deck is determined by the length of bolts used
Installation
- Positioning Joist Support Base Plates
- Drill Holes for Base Plate
- Inserting M10 Hex Head bolt
- Fixing Base Plate
- Attach Joist Support
- Insert Joist into Support
- Joist Adjustment
See the product flyer for more details.
Approvals
Manufactured to meet deck loading as per Australian/New Zealand Standard AS/NZS 1170.1:2002, permanent, imposed and other actions.
