SIMPSON STRONG-TIE DIAPHRAGM TENSION STRAPS
SIMPSON STRONG-TIE DIAPHRAGM TENSION STRAPS
The MSTC is designed to resist tension loads in timber-to-timber applications. This diaphragm tension strap tie utilizes a staggered nail pattern to help minimize timber splitting. The high-capacity MSTC also features countersunk nail slots for a lower nailing profile.

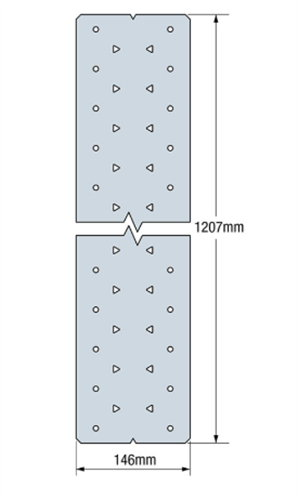

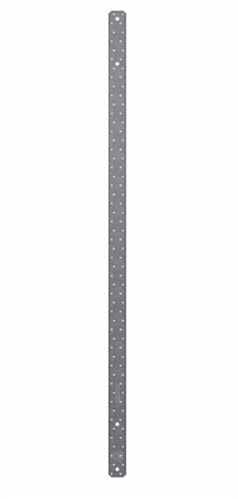

Simpson Strong-Tie tested and load-rated tension straps and fasteners are designed to minimize cost and maximize speed and precision — while providing the strength, versatility and reliability you depend on. The MDCST48 is a 14-gauge high-capacity strap specifically designed to carry tension across a CLT floor or wall panel joint. The MDCST48 installs with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector Screws.
Material
Carbon Steel
Finish
Z275 Galvanised
Features & Benefits
- Pre-punched screw holes speed fastener installation
- High capacity eliminates the need for expensive shop-fabricated steel plates
- Straps may be overlapped to reduce the physical space or footprint needed to transfer high loads across a panel joint
Applications

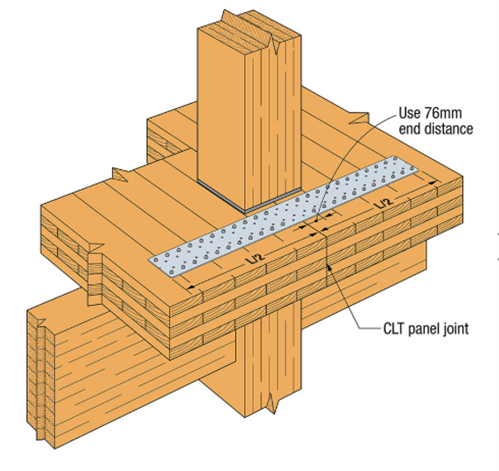

- CLT Floor or Wall Panel Joint

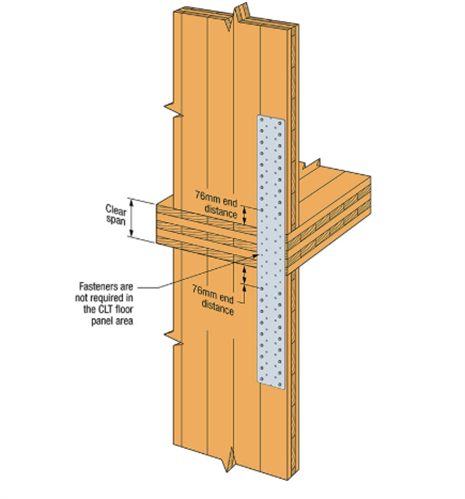

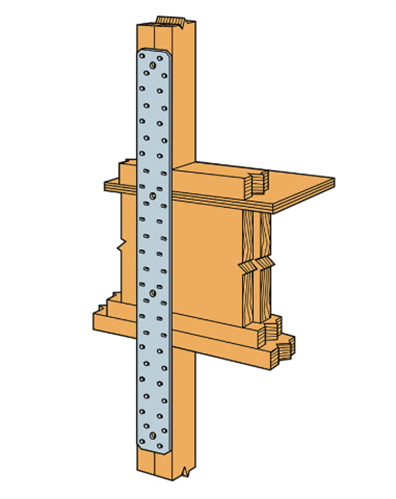

- Floor-to-Floor Tie Down
- Diaphragm Tension Strap
