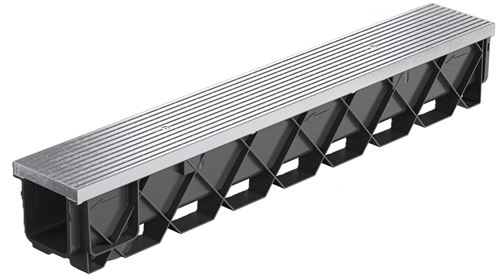

RELN STORM DRAIN PRO 100
Product Overview
RELN has created a new surface water drainage range of Storm Drain Pro™ Series 100, in addition to our existing ranges of RELN Storm Drain Pro™ and RELN Storm Drain™.

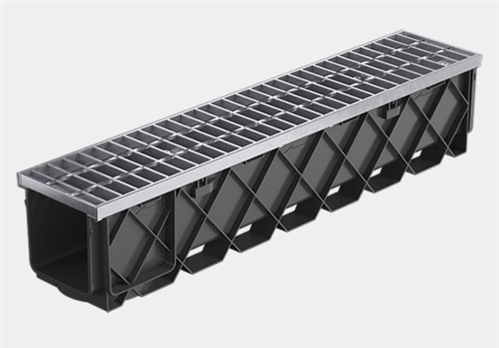

The RELN Storm Drain Pro™ 100 Series is a range extension to the RELN Storm Drain Pro™ range and has the same design features as the 150mm Storm Drain™ Pro range, in a 100mm profile.
- Trade Range – Higher specified range designed to withstand larger load ratings
- Durability – Made in Australia from tough, durable, and lightweight UV stabilised recycled plastic
- Easy to install – Storm Drain Pro™ is a breeze to install with its easy connecting channels, interchangeable clip-in grates and hold down feet to stop floatation during the pouring of concrete
- Galvanised steel edges – Rated to light commercial traffic
- Complies to Australian Standard AS3996 Class B and Class C Load Rating – Storm Drain Pro™ is available in two grate options that comply with the AS3996 Class B & Class C Load Ratings
- For connection of PVC stormwater pipe to Bottom Outlet and/or the End Outlet of channel – Use silicone. The channel is polypropylene and plumbers glue will not adhere
Design Overview

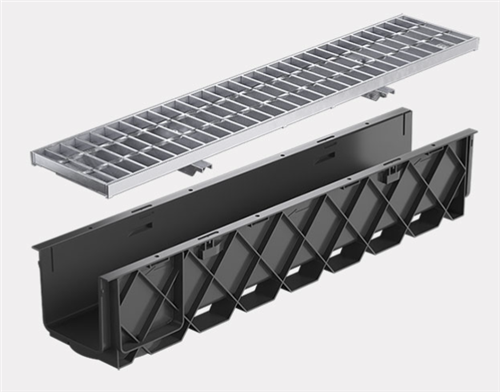

- 100mm injection moulded PP 1m Channel
- Male/Female tongue connection
- Positive clip in side to stop the channel sections from separating once connected
- Same profile as 150mm channel
- Iconic Criss/Cross design with anti-floatation feet for easy install.
- Side connection for 90° change of direction of channel
- Galvanised steel edge rails, clip on – edges to also be capable of stainless steel and brass
- Cross bar for lock down of grates
- PVC pipe connection via a multi-size bottom outlet socket (inserted in tool)
- Side lock down option for Class D Ductile Iron Grates
- AU 90mm Stormwater and 100mm DWV.
- USA – 4inch
- Grate suitable for light commercial applications Class B & C of AS3996

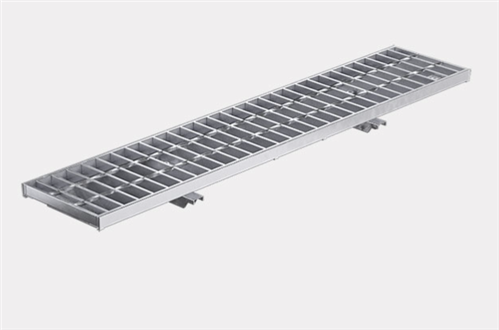

- Grates in Galvanised Class B, and Galvanised Heel Guard
- Grate depth of 20mm
- Grate Land width of 20mm
- End Cap – no end outlet
- End Cap to engage with clips at both ends via slotting in the channel
- Leaf Guard
