FAST FIX Hinges – Commercial & Timber/Aluminium Variants

The Lockwood AH130 Fast Fix Hinge is a heavy-duty hinge designed for quick installation on aluminium and timber doors. Its bi-directional face fix locator flanges enable faster and precise fitting for commercial and residential applications.

Installation Guide

• Minimum door thickness: 40mm

• Up to 2100mm high x 900mm wide x 100kg – 3 hinges

• Up to 2400mm high x 900mm wide x 100kg – 4 hinges

Fixing

• Heavy-duty bi-directional fixing

• Face fix locator flange for faster installation

• Supplied with 11 x 10G x 12mm 304SS undercut countersunk self-tapping (AB) Phillip drive screws

Technical Specifications

• Hinge: 6063-T6 alloy

• Hinge Pin: 6mm 304 grade stainless steel

• Nylon bushes

• Squareline heavy-duty knuckles

• Interference pressed-fit aluminium end caps

Available Models

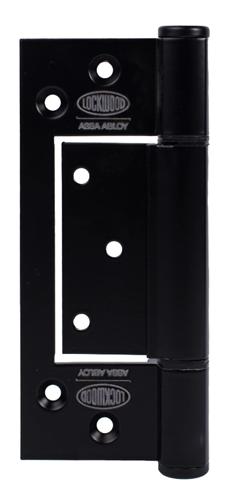

• Commercial Aluminium Hinge – Black — AH130BLK

• Timber / Aluminium Hinge – Black — AH130TBLK

• Commercial Aluminium Hinge – Champagne — AH130CAN

• Timber / Aluminium Hinge – Champagne — AH130TCAN

• Commercial Aluminium Hinge – Silver — AH130SIL

• Timber / Aluminium Hinge – Silver — AH130TSIL

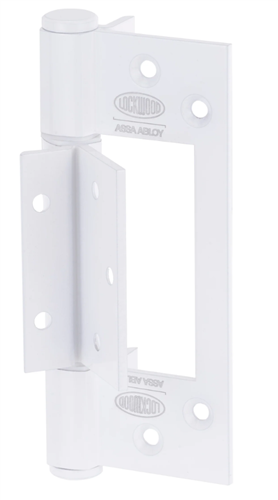

• Commercial Aluminium Hinge – White — AH130WH

• Timber / Aluminium Hinge – White — AH130TWH
