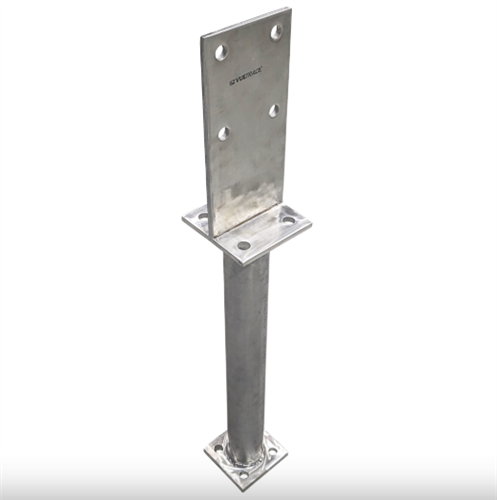

STAINLESS STEEL T-BLADE POST SUPPORTS WITH LEG
VUETRADE Stainless Steel T-Blade Post Supports with Legs are concealed anchors ideal for coastal use, installed by bolting timber posts onto or setting them into concrete.
• 10.0mm thick steel blade and base
• 35mm – 73mm diameter legs
• 304 Stainless Steel – durable, corrosion resistant, and suitable for use in some coastal and corrosive environments (Available in SS316 by special order)
Warning: Mandatory and recommended usage of stainless steel timber connectors varies in different states and areas – always check with your local building authorities. VUETRADE Stainless Steel fixings should always be used with CoastalSS stainless steel brackets.
| Product Code(s) | Size | Suits Timber Post |
Blade Bolt Size |
|---|---|---|---|
| VHDBLPS60080SS | 80mm x 80mm Base, 250mm Blade, 600mm x 35mm Leg |
90 - 100mm | M12 |
| VHDBLPS600110SS | 110mm x 110mm Base, 275mm Blade, 600mm x 35mm Leg |
115 - 140mm | M16 |
| VHDBLPS600140SS | 140mm x 140mm Base, 300mm Blade, 600mm x 35mm Solid Leg |
150 - 180mm | M16 |
| VHDBLPS600180SS | 180mm x 180mm Base, 350mm Blade, 600mm x 73mm Leg |
180 - 250mm | M16 |
