SIMPSON STRONG-TIE VARIABLE PITCH GIRDER TIE DOWN Z275 Galvanised
SIMPSON STRONG-TIE VARIABLE PITCH GIRDER TIE DOWN Z275 Galvanised

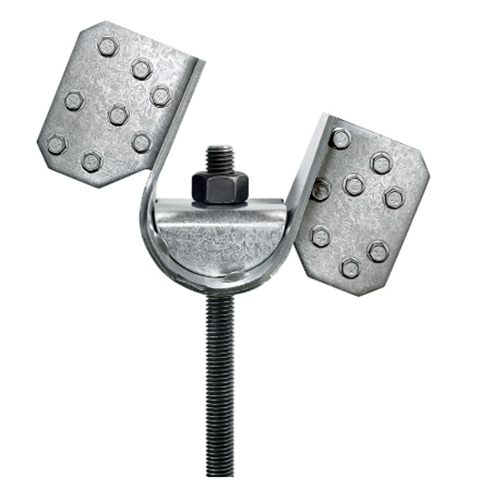

The variable-pitch girder tiedown, VGT, is a high-capacity tiedown for multi-ply girder trusses and is suitable for High Wind Zones. It attaches with self-drilling screws from the side of the truss. The VGT uses Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for wood truss applications.

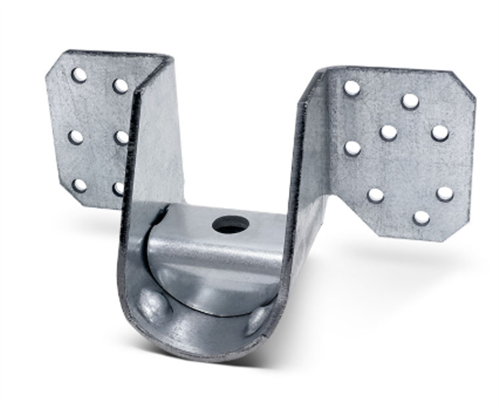

The VGT features a predeflected seat and washer reducing deflection under load. This also allows the connector to accommodate top chord pitches of up to 35 degrees.
US Patent 7,707,785
Material
Carbon Steel 4.5mm thick
Finish
Z275 Galvanised
Features & Benefits
- Suitable for retrofit applications
- Available with one flange concealed for attachment to trusses with no tail
- Load rated to resist high-wind forces
- Suits 12mm and 16mm threaded rod
- Can be used with post installed AT-HP or VT-HP
Installation
- Use all specified fasteners
- Screw holes are configured to allow for double installation on multi-member girders
- Install washer component (provided) so that top of washer is horizontal and parallel with top of wall
Applications
- Can be installed in a single application or in pairs to achieve a higher uplift capacity
- Can be installed on roof pitches up to 35º
- Suitable for High Wind Zones
- Suitable for use with cast in or post installed threaded rod
